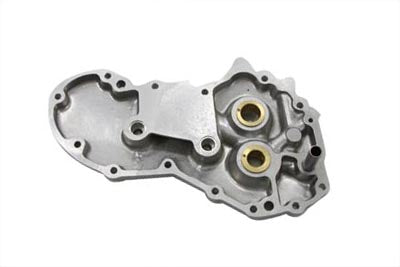

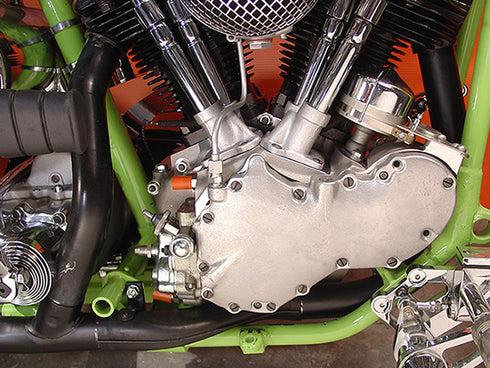

Replica Knucklehead Cam Cover
Cam cover is exact Replica for 1937-1940 EL models smooth type! Cam cover bushings must be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink check with screw head before installation. The oil line fitting measures 2/8 x 28. *NOTE: Check oil passage (drilled hole) into bronze bushings either on existing bushings or when replacing bushings. Generator holes for 32E 6 volt 2 brush generators are 1/4 inch on Pre-1957 models and 5/16 inch on 1958-1969 models.
Measurements: Oil Line Fitting: 3/8 x 28
Tech Notes: *NOTE: Final reaming for fit should be completed with cover on the right side case reamed from the left side.
FITS
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
