PRODUCT INFORMATION

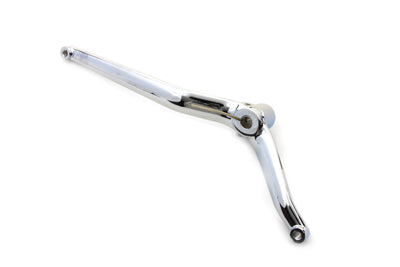

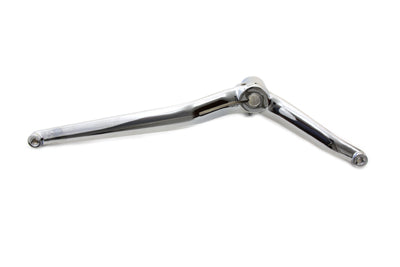

Heel Toe Shifter Lever Chrome
The shifter peg hole is 5/16 inch-24 thread. The center shaft area is splined and the inner diameter of the splined hole is 0.471 inch. The center of the spline to center of hole on short side is 4-3/4 inch center of the spline to center of the hole on long side is 9-3/8 inch. And end to end is 14 inch. has allen screw next to center spline hole to attach to inner shifter arm.
Measurements: Total Length: 14 inches
Tech Notes: Suggested to use with #27-0920 footboard kit
FITS
Harley Davidson FXD 1996
Harley Davidson FXD 1997
Harley Davidson FXD 1998
Harley Davidson FXD 1999
Harley Davidson FXD 2000
Harley Davidson FXD 2001
Harley Davidson FXD 2002
Harley Davidson FXD 2003
Harley Davidson FXD 2004
Harley Davidson FXD 2005
