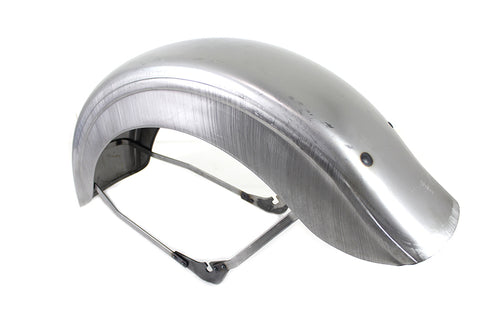

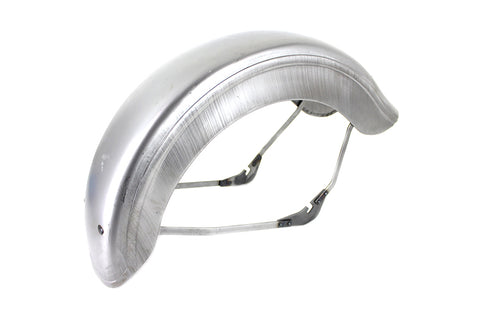

VL Spring Fork Front Fender
This Spring Fork fender mounts to the 2 front tabs on the front Spring Fork leg and features wide braces and includes the lower bracket set which is riveted in place. The wide braces are 5/8 inch wide and are 10-3/4 inch apart at the rocker stud position. Fender braces include the slotted key hole type mount to mount to the outside of the rockers on the front stud. The fender brace set uses 16.04mm x 4.15mm thick material. The holes in the top of the fender must be added and the inner brace is included for this top mount position but must be drilled and spot welded in place. *NOTE: The top mount holes should be countersunk and drilled by builder.
Measurements: Width: 7-1/4 inches
Tech Notes: Required to use with OEM #3730-34 the bracket which mounts to rocker stud as listed in VT #48-0328 JD-VL-EL-UL Parts Manual.
FITS
Harley Davidson VL 1930
Harley Davidson VL 1931
Harley Davidson VL 1932
Harley Davidson VL 1933
Harley Davidson VL 1934
Harley Davidson VL 1935
Harley Davidson VL 1936
