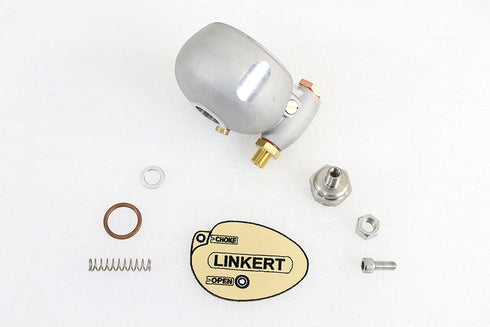

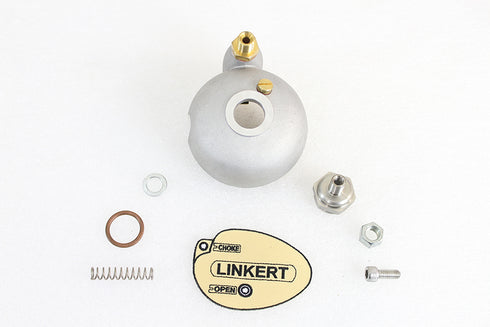

Side Valve Linkert Carburetor Bean Pot Style Float Bowl Kit
*NOTE: Float bowl with drain screw includes installed stainless steel needle with matching brass seat assembly installed black unsinkable nitrophyl linkert float with our unique 1 piece float arm in brass for smooth action and pivot pin with two caps. Larger inner diameter adds 1.45 cubic inches to hold additional fuel. Extra capacity for racing applications has external bow hex cap. Has 9/16 x 20 hex plug at needle valve opening. Fits all brass linkert carburetors for additional fuel capacity! Needle valve seat opening is milled flat and sealed by carburetor body after assembly. Products. As original float brass top cap is for use on side valve models only. **NOTE: Original inchBean Pot inch linkert bowl design was developed by Tom Sifton of Sifton Motorcycle Products. As original float brass top cap is for use on side valve models only. For the float arm installation the center of the float arm should have .003 inch of clearance in order for the arm and needle to move freely.
FITS
Harley Davidson G 1936
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson UL 1937
Harley Davidson UL 1938
Harley Davidson UL 1939
Harley Davidson UL 1940
Harley Davidson UL 1941
Harley Davidson UL 1942
Harley Davidson UL 1943
Harley Davidson UL 1944
Harley Davidson UL 1945
Harley Davidson UL 1946
Harley Davidson UL 1947
Harley Davidson UL 1948
Harley Davidson W 1936
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
