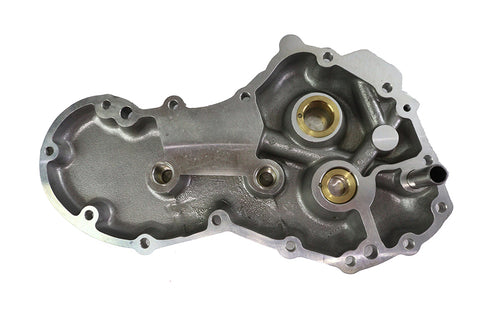

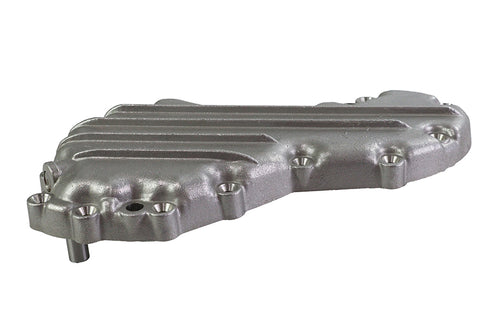

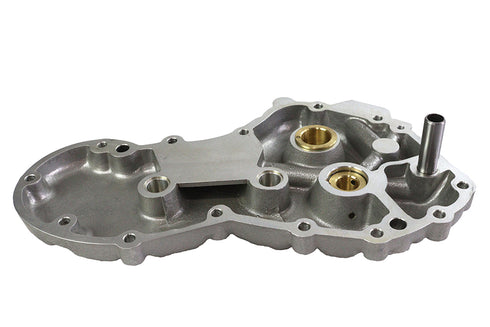

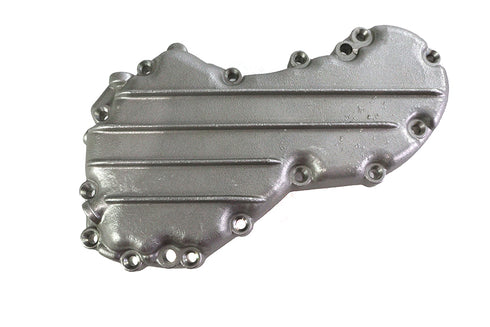

Factory Sample 4-Finned FL Cast Cam Cover

Cam cover bushings must be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink check with screw head before installation. Generator holes for 32E 6V 2 brush generators are 1/4 inch on Pre-1957 models and 5/16 inch on 1958-1969 models. Before installation check the height of the cam bushing for interference with the distributor drive gear. Check oil passage (drilled hole) into bronze bushings either on existing bushings or when replacing bushings. *NOTE: The oil hole in the cam bushing should be checked by the customer may have to drill this hole. Factory sample is a brand new production part but may have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment.
Tech Notes: *NOTE: Final reaming for fit should be completed with cover on the right side case reamed from the left side. *NOTE: Cover is taller than the stock type by .020inch on the outer bushing lip.
