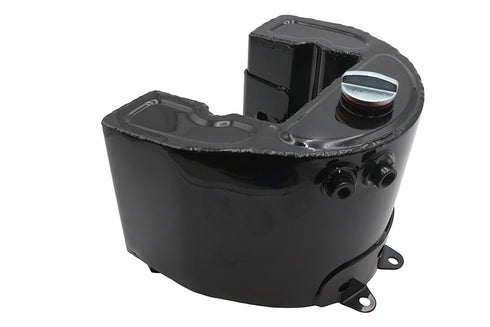

Replica Black Oil Tank
Bottom feed hole is 3/4 inch - 20 TPI and requires a fitting to resize the hole to 1/2 inch - 20 TPI for the banjo bolt. The left vent hole is 3/8 inch - 24 TPI. The right return hole is 1/2 inch - 20 TPI. We suggest to use taps to clean the threads before installing the oil lines. *NOTE: Must order oil line banjo fitting and oil feed valve separately. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall.
Measurements: Battery Width: 4-7/8 inches
Tech Notes: Requires the use of #40-0623 Oil Banjo Line Fitting and #40-0156 Banjo Fitting Bolt for Feed and Return Oil Lines. Requires the use of #40-0157 Feed Oil Line washer for #40-0146 Cadmium Feed and #40-0148 Cadmium Return Oil Lines. Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit. Suggested to use with #40-0325 Oil Feed Valve Assembly Zinc Plated.
Instructions: http://www.vtwinmfg.com/Instructions/40/40-0472.pdf
FITS
Harley Davidson EL 1937
Harley Davidson UL 1937
