DH-50 3 Position Dimmer Switch Chrome

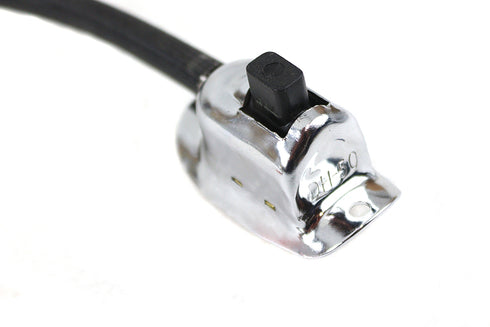

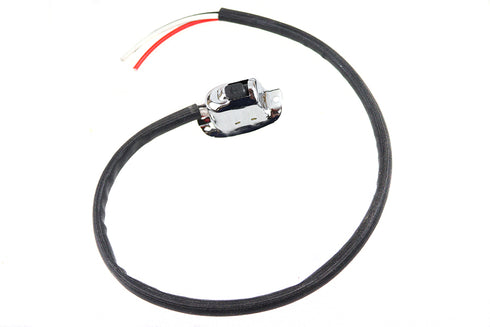

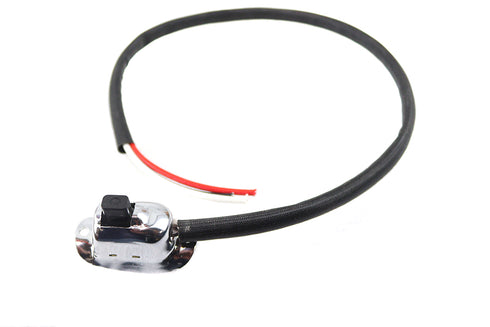

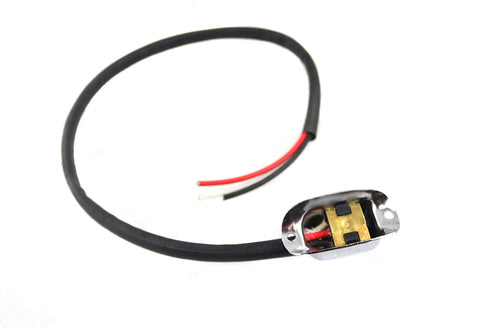

The switch body features an updated shape for a contoured fit to the bar as the OEM. Wires are green black and red all with white tracer. Features original guide design with switch stamped DH50 at the end. Includes 3 cloth covered wire connected. *NOTE: Must order clamp on clamps separately. **NOTE: 3 position switches for directionals off in center. **NOTE: Color coded wires are as follows: the center wire for the switch terminal block (feed wire) is red with a black tracer the wire that goes to the large terminal on the Cycle Ray headlamp is black with a red tracer and the wire that goes to the small terminal on the Cycle Ray headlamp is red with a yellow tracer.
FITS
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson EL 1941
Harley Davidson EL 1942
Harley Davidson EL 1943
Harley Davidson EL 1944
Harley Davidson EL 1945
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson EL 1948
Harley Davidson EL 1949
Harley Davidson EL 1950
Harley Davidson EL 1951
Harley Davidson EL 1952
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson FL 1970
Harley Davidson FL 1971
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson G 1958
Harley Davidson G 1959
Harley Davidson G 1960
Harley Davidson G 1961
Harley Davidson G 1962
Harley Davidson G 1963
Harley Davidson G 1964
Harley Davidson G 1965
Harley Davidson G 1966
Harley Davidson G 1967
Harley Davidson G 1968
Harley Davidson G 1969
Harley Davidson J 1929
Harley Davidson RL 1929
Harley Davidson RL 1930
Harley Davidson RL 1931
Harley Davidson RL 1932
Harley Davidson RL 1933
Harley Davidson RL 1934
Harley Davidson RL 1935
Harley Davidson RL 1936
Harley Davidson VL 1930
Harley Davidson VL 1931
Harley Davidson VL 1932
Harley Davidson VL 1933
Harley Davidson VL 1934
Harley Davidson VL 1935
Harley Davidson VL 1936
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
