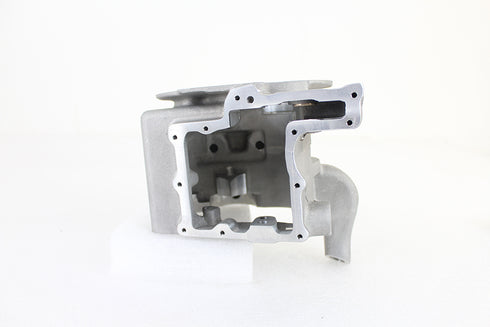

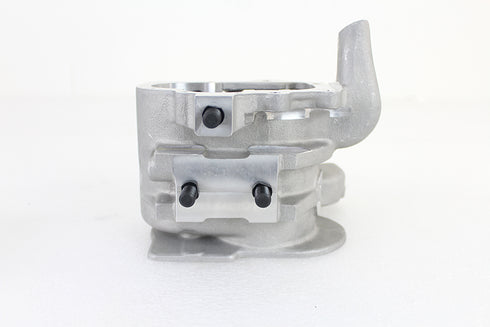

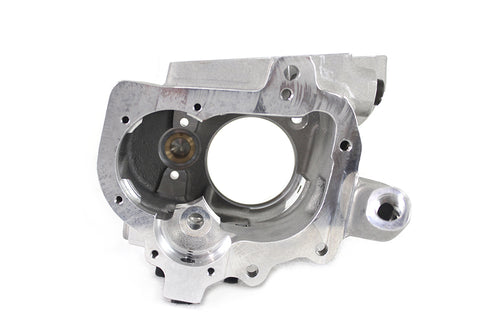

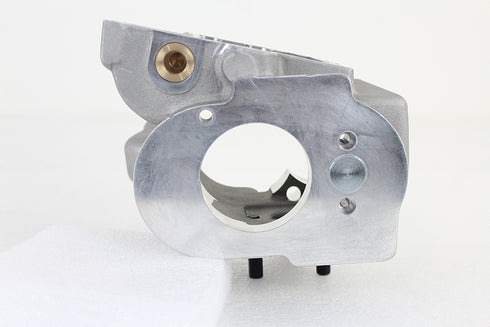

45 inch W/G Transmission Case
Case accepts: 3-speed 3-speed and reverse and 4-speed internals. *NOTE: 45 inch W/G transmission case requires components and hardware as listed for assembly separately. *NOTE: Bottom mount studs left countershaft transmission bushing both the inner and outer shifter bushings with the welch plug and the cam plunger bushing are installed. *NOTE: The main race required available separately has to be pressed in must be honed after installation.
Tech Notes: Required to use with #10-2527 Cam Bushing .005 Oversize. Required to use with #12-0599 Engine Case 1/2inch Welch Plug. Required to use with #9919-3 Transmission Bottom Stud Kit. Required to use with #10-2514 Transmission Shifter Shaft Bushing Large. Required to use with #10-2518 Shifter Shaft Bushing Small. Required to use with #10-2547 Left Countershaft Transmission Bushing. Required to use with #2655-1 Transmission Fill Plug. Required to use with #9761-4 Kick Starter Trip Bolt and Nut Kit. Required to use with #49-0080 Transmission Case Cover. Required to use with #17-0391 Servi-Car Reverse Idler Shaft. Required to use with #49-0455 Transmission Side Cover for on 4-speed Transmission Case. Required to use with #9836-10 Chrome Countersunk Washer Set 3/8inch. Required to use with #9686-16 Sprocket Cover Stud Nut Kit Parkerized. Required to use with #9666-27 Transmission Top and Side Cover Screw Kit Parkerized. Required to use with #17-0372 2nd Gear Retaining Bracket.
Instructions: http://www.vtwinmfg.com/Instructions/49/49-0172.pdf
FITS
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson G 1958
Harley Davidson G 1959
Harley Davidson G 1960
Harley Davidson G 1961
Harley Davidson G 1962
Harley Davidson G 1963
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
Harley Davidson WL 1937
Harley Davidson WL 1938
Harley Davidson WL 1939
