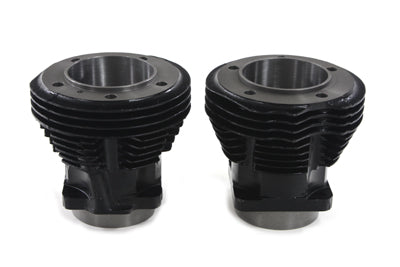

3-5/8 inch Cylinder Set
For installation of 3-5/8 inch cylinders after spigot holes have been enlarged. (See diagram for photos.) *NOTE: 3-5/8 inch cylinders are drilled to use with 4-1/2 inch and 4-1/4 inch stroke. Will require break in as suggested in the shop manual. These are cylinders only. Order pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out to 3.8750 inch. Disassmbly of engine is required to install these cylinders. NOTE: The finished bore size should be 3.8750 inch to fit 3-5/8 cylinders. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.
Measurements: Length: 6-5/8 inches
Instructions: http://www.vtwinmfg.com/Instructions/11/11-0380.pdf
FITS
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson FL 1970
Harley Davidson FL 1971
Harley Davidson FL 1972
Harley Davidson FL 1973
Harley Davidson FL 1974
Harley Davidson FL 1975
Harley Davidson FL 1976
Harley Davidson FL 1977
Harley Davidson FL 1978
Harley Davidson FL 1979
Harley Davidson FL 1980
Harley Davidson FL 1981
Harley Davidson FL 1982
Harley Davidson FL 1983
Harley Davidson FL 1984
Harley Davidson FLT 1979
Harley Davidson FLT 1980
Harley Davidson FLT 1981
Harley Davidson FLT 1982
Harley Davidson FLT 1983
Harley Davidson Fx 1971
Harley Davidson Fx 1972
Harley Davidson Fx 1973
Harley Davidson Fx 1974
Harley Davidson Fx 1975
Harley Davidson Fx 1976
Harley Davidson Fx 1977
Harley Davidson Fx 1978
Harley Davidson Fx 1979
Harley Davidson Fx 1980
Harley Davidson Fx 1981
Harley Davidson Fx 1982
Harley Davidson Fx 1983
Harley Davidson Fx 1984
Harley Davidson FXR 1982
Harley Davidson FXR 1983
