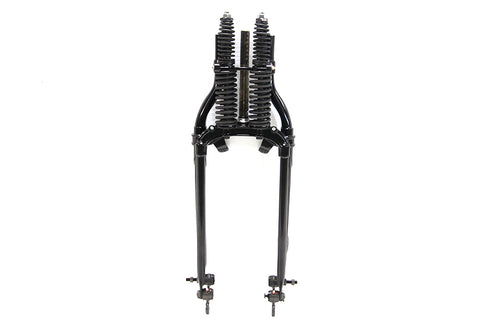

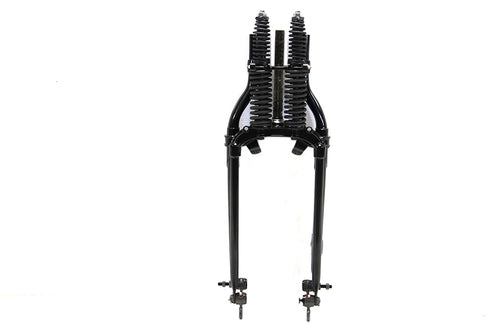

18 inch Inline Spring Fork Assembly Black

Assembly includes inner and outer springs front and rear legs inside rockers for a 3/8 inch axle spring rod with bushings and internal brake wheel with all studs and bushings. Top clamp neck races and cone nut are not included. Some assembly may be required. 1 inch tubes on rear legs are tapped 3/4 inch-16 to accept threaded riser bushing set with this installed the builder can use a triple tree without ears and choice of post riser set. The stem is 7/8 inch. The distance between the rockers measure 6.5 inch. Assembly is a product of 14 separate processes: Tubing Hydraulic Swage Press Investment Casting Forging Flattening Press Robotic Welding Brazing Polish Chrome Paint Spring Winder Machine Shop Drill Shop and Packaging. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line.
Measurements: Length: 18 inches
Tech Notes: Suggested to use with #49-1963 WL Front Axle Black. *NOTE: 45inch Spring Fork rockers are mounted to the inside of the fork and utilize a 3/8inch axle. 45inch Servi-Cars 1947-1957 use Big Twin rockers on the outside of the fork. How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for ease of installation.
Instructions: http://www.vtwinmfg.com/Instructions/49/49-2400.pdf
