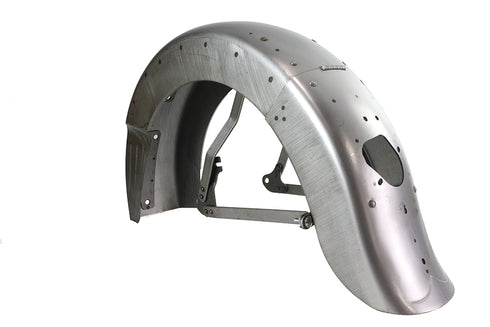

1955-57 FL Rigid Rear Fender

Underside of fender includes wire loom track welded in place side loom track and 2 clips to hold spring loom cover. Spring type flexible loom available separately. All hinged fenders must be hand fitted at the hinge and pin area. Alignment needs to be adjusted and tweaked to fit your components. Before finishing with primer or painting fit the fender body braces mounting points in place and check the alignment of fender tail and bracket. Fender rivets hinge and brackets need to be tweaked for final fitment. Patience is required for proper installation! *NOTE: Chain panel with ribs is built-in as one piece with the fender. Features cut out for 1955-69 tail lamp. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: Replacement fenders ordered through H-D dealers came with 3/4 inch brackets that are inchover the counter inch replacement not OEM installed by the factory. Constructed with 3/4 inch fender brace.*NOTE: Use with license plate bracket replica tail lamp primer and tail lamp with glass lens.
Measurements: Fender Width: 7-1/4 inches
Tech Notes: Fender hinge construction updated 2024. Underside of rigid rear fender details: A) Wire Loom Spring B) Hinge Junction C) Loom Clip Strip on Fender Radius D) Spring Clip E) 7/8inch Wide Brace F) Ribbed Chain Panel. *NOTE: Replacement fender ordered thru H-D dealer came with 3/4inch brackets. These were over the counter replacements not OEM installed at the factory. Suggested to use with #33-0300 Stock Type Chrome oval Tail Lamp. Suggested to use with #50-1250 Wire loom Fender Strip Raw Suggested to use with #33-1804 Tail Lamp with Glass Lens Suggested to use with #33-0299 Replica Tail Lamp Primer Suggested to use with #33-1551 License Plate Frame Bracket Black
Instructions: http://www.vtwinmfg.com/Instructions/50/50-0366.pdf
