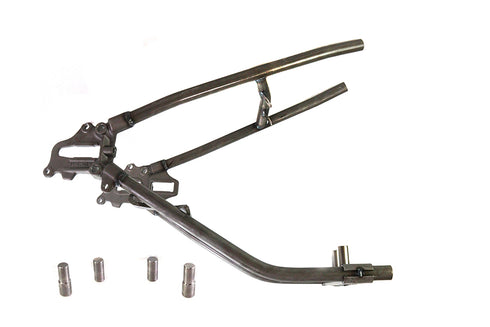

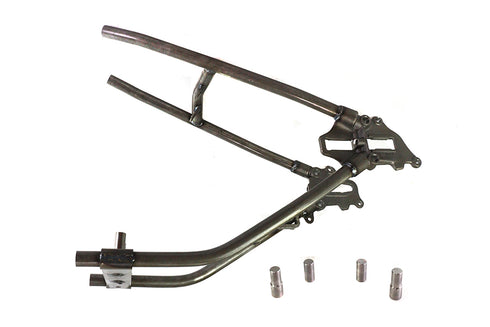

Hardtail Rear Frame Section
Hardtail for Softail cut original frame as shown. Use transmission mount plate and clamps as noted for mounting FXST oil tank. *NOTE: Set up for use with a 51 tooth rear pulley with 1-1/2 inch belt. Frame can be used with stock pulley and belt as well as 61 tooth and 70 tooth combos. Use transmission mount plate mounted in Softail frame (front) and hardtail rear bolt in place inchtight inch this is for alignment. Hardtail accepts 1987-1999 Softail rear caliper and bracket. Bracket for caliper is welded in place on the right side. Spacers required. The axle slots are 7/8 inch on both sides. For use with a 140 size tire. 1 inch clamps suggested for rear oil tank mounting. *NOTE: Must be welded in place by an experienced fabricator! The oil tank connects to the fender cross bar. *INSTALLATION: Transmission plate and top hardtail plate with 1/4 inch holes aligns hardtail to frame. Install dowel pins top and bottom tack weld to hold in place before final welding. *NOTE: Order transmission mount plate separately.
FITS
Harley Davidson FXST 1986
Harley Davidson FXST 1987
Harley Davidson FXST 1988
Harley Davidson FXST 1989
Harley Davidson FXST 1990
Harley Davidson FXST 1991
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
Harley Davidson FXST 1999
