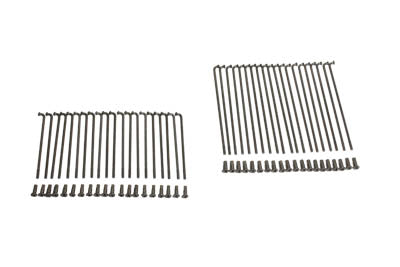

Polished Stainless Steel 16 inch Spoke Set
9 gauge single stage spokes feature a natural finish. Spokes are easy to clean and maintain. For use on a 16 inch drop center or OE rim with a solo hub. *NOTE: We suggest using 22mm long nipples when lacing 45 Front drum wheels. *NOTE: If required longer nipples are available separately.
Measurements: Short Spoke Length: 175mm
Tech Notes: Suggested to use with #52-0966 Replica 16inch x 3.00inch Drop Center Wheel Rim Chrome. Suggested to use with #52-0967 Replica 16inch x 3.00inch Drop Center Wheel Rim Black. Required to use with #45-0922 40 Piece Spoke Nipple Set Stainless Steel if longer nipples are needed. Suggested to use with #45-0927 Spoke 40 Piece Stainless Steel Nipple Set when lacing 45 front drum wheels. Information for lacing the 16inch 45inch wheel: Drum Side - Top cross 2 clockwise spoke head down. Lower spoke cross 2 counter clockwise spoke head up. Spook side - top cross 4 clockwise. Bottom cross 4 counter clockwise. 11/16inch offset from drum side flange to rim.
FITS
Harley Davidson WL 1940
Harley Davidson WL 1941
Harley Davidson WL 1942
Harley Davidson WL 1943
Harley Davidson WL 1944
Harley Davidson WL 1945
Harley Davidson WL 1946
Harley Davidson WL 1947
Harley Davidson WL 1948
Harley Davidson WL 1949
Harley Davidson WL 1950
Harley Davidson WL 1951
Harley Davidson WL 1952
