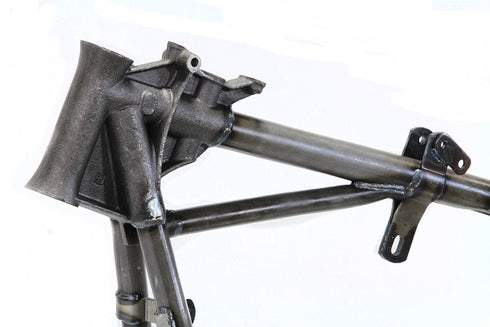

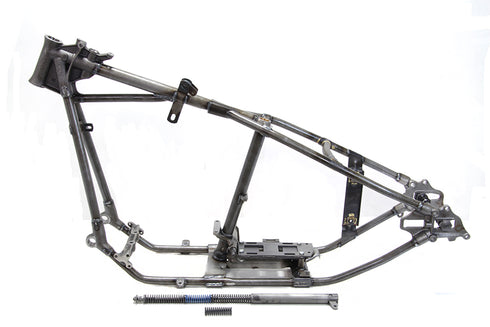

Replica Knucklehead 28 Rake Frame
Frame includes seat post brake cross shaft rear axle assembly transmission plate and a motor alignment plate pre-installed for safer shipping. Cross shaft bushings correct tool box mount and grease fittings are also installed. Tool box pads are round shape and positioned to mount rectangular tool box. Forged parts in the construction include: Neck front and rear motor mounts seat yoke side car loops and rear axle plates. **NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. For this reason frames will not be accepted for return (RGA). **NOTE: In lieu of a serial number stamped on the replica frame V-Twin MFG supply's a Bill of Sale only referencing the part number. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
Tech Notes: Knucklehead frame requires purchase of clamp on coil bracket kit #49-0099. In some instances it may be necessary to ream or file holes slightly in order to assemble parts onto the frame.
FITS
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
