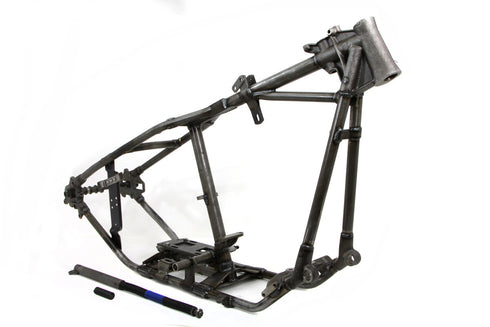

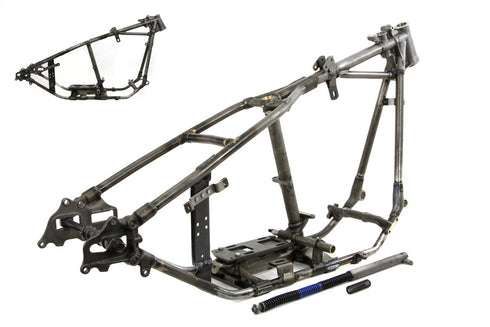

Replica Knucklehead 30 Rake Frame
Forged parts included in the construction are the neck front and rear motor mounts side car loops and rear axle plates. The 30 neck angle will accept offset spring forks. Top cross member across rear legs is brazed as on original Knucklehead frames. Seat post is included. Seat post bushing mechanical brake cross shaft bushings correct tool box mount and grease fittings are installed. Manufacturer's Statement of Origin is supplied. *NOTE: Frame joints are argon welded together. *NOTE: Mount seat inchT inch to frame before installing gas tanks. Place 6320 washer between the tank and the frame tab before mounting. **NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. *NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplies a Bill of Sale only referencing the part number.
Tech Notes: *NOTE: UPS may consider this part as packages inchoversizeinch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson U 1946
Harley Davidson U 1947
