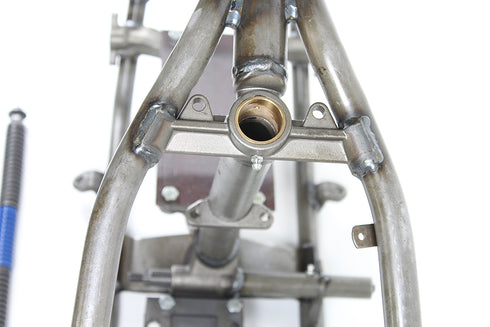

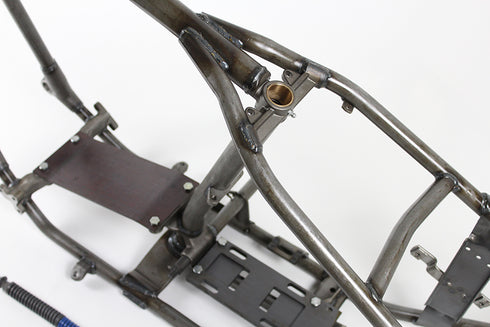

Replica Retro Straight Leg Rigid 30 Rake Frame

Includes seat post transmission mount plate for 4-speed transmission and rear axle. Accepts Panhead Shovelhead Evolution and Twin Cam engines but requires a tin inner primary. Accepts 1986-1999 FXST gas tanks and chain final drive. Frame has a +2 inch raised neck and 9-1/8 inch between the axle plates. Supplied with the rigid frame is the brake cross shaft for mechanical brakes and stock rear axle plate for use of the star hub wheel and mechanical brakes. The frame is taller in the engine compartment to house the Evolution and Twin Cam motors. Rigid mount 5 and 6 speed transmission with the aluminum inner and outer primarys check height of transmission plate for correct primary alignment. Retro rigid frame is shown with a TC-88 motor installed with steel rear motor mount available separately. Use with Softail type transmissions. Frame as listed will accept mechanical brakes for the old style look. Accepts a 140mm rear tire.
Tech Notes: Suggested to use #31-0913 Front Seat Mount which mounts to t wo dowels between the tank to connect the seat T. *NOTE: If you are using a seat post remember the seat post tube has a bend in it to accept the Evolution or Twin Cam motors. It will be necessary to shorten the tube portion of the seat post but still connect the rod to lower frame bracket. *NOTE: Seat post may require further reaming for proper fit. *NOTE: There are no serial numbers stamped on the replica frame. V-Twin supplys a Bill of Sale only referencing the part number. *NOTE: UPS may consider this part as packages inchoversizeinch for shipment as compared to the actual weight which will result in higher shipping costs. Frame may require modification to the motor mount holes for correct alignment and for clearance in the front rocker box area. Suggested to pre-assemble with inner primary transmission and rear mount adapter on TC-88 type motors.
