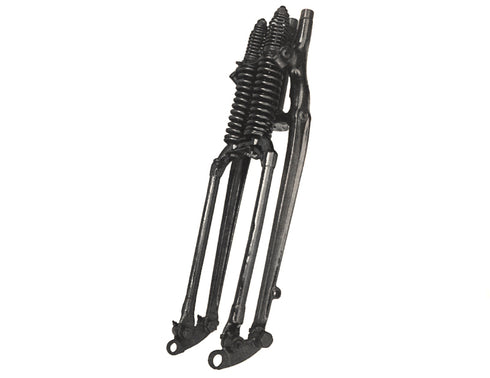

VL 1 inch Spring Fork Assembly Black
We measure from the top of the rear leg (tube) to the front axle center line. Stem is 1 inch in diameter and can be used with 1936-1947 EL Big Twin neck cups and ball bearing races. Stem can also be set up with tapered bearings and neck cups. *NOTE: Features a 1 inch stem but can be adapted to original 1930-1936 VL frames with the use of collars for the races. VL forks accepts the axle and brake drum assembly for 1936-1948 Big Twin models. *NOTE: Must order top tree and axle separately. Legs are drilled 1/2 inch for rocker studs with offset rocker on right side. Accept spring front brake drum assembly. Fork assembly includes rocker kit axle kit and spring sockets. *NOTE: Stock VL models feature a 1-1/8 inch outer diameter stem. Use on VL models will require spacers or shims for races and bearings.
Measurements: Between Rockers: 8 inches
Tech Notes: Suggested to use with #49-1104 VL Spring Fork Top Triple Tree White Zinc.
Instructions: http://www.vtwinmfg.com/Instructions/49/49-1868.pdf
FITS
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson EL 1941
Harley Davidson EL 1942
Harley Davidson EL 1943
Harley Davidson EL 1944
Harley Davidson EL 1945
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson EL 1948
Harley Davidson EL 1949
Harley Davidson EL 1950
Harley Davidson EL 1951
Harley Davidson EL 1952
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson VL 1930
Harley Davidson VL 1931
Harley Davidson VL 1932
Harley Davidson VL 1933
Harley Davidson VL 1934
Harley Davidson VL 1935
Harley Davidson VL 1936
