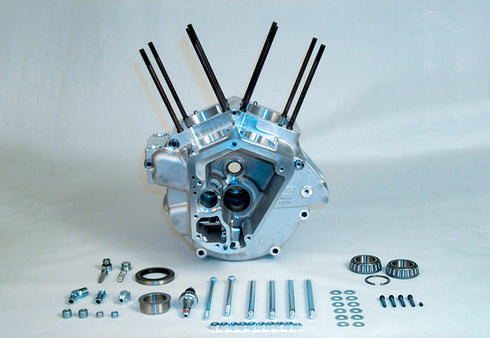

Crankcase set for V2 type engines comes ready to assemble.
S&S crankcase set includes Timken left side bearing race assembly seal seal spacer oil pump drive bushing needle bearing pinion race for right side is pressed in and line honed ready to assemble. Also included are cylinder studs nickel plated case bolts crankcase fittings and a timing and magnetic drain plug. Engine case features stock bore and will accept flywheels up to 8-1/2 inch diameter. Manufacturer's Statement of Origin is supplied. *NOTE: Flywheel accepts early model crank pin. The rod set can be fitted with an early pin if required for installation.
Tech Notes: Suggested to use with #12-8002 Oil Pump Assembly. Suggested to use with #10-0272 Connecting Rod Assembly H-Beam.
FITS
Harley Davidson FLST 1992
Harley Davidson FLST 1993
Harley Davidson FLST 1994
Harley Davidson FLST 1995
Harley Davidson FLST 1996
Harley Davidson FLST 1997
Harley Davidson FLST 1998
Harley Davidson FLT 1992
Harley Davidson FLT 1993
Harley Davidson FLT 1994
Harley Davidson FLT 1995
Harley Davidson FLT 1996
Harley Davidson FLT 1997
Harley Davidson FLT 1998
Harley Davidson FXD 1992
Harley Davidson FXD 1993
Harley Davidson FXD 1994
Harley Davidson FXD 1995
Harley Davidson FXD 1996
Harley Davidson FXD 1997
Harley Davidson FXD 1998
Harley Davidson FXR 1992
Harley Davidson FXR 1993
Harley Davidson FXR 1994
Harley Davidson FXST 1992
Harley Davidson FXST 1993
Harley Davidson FXST 1994
Harley Davidson FXST 1995
Harley Davidson FXST 1996
Harley Davidson FXST 1997
Harley Davidson FXST 1998
