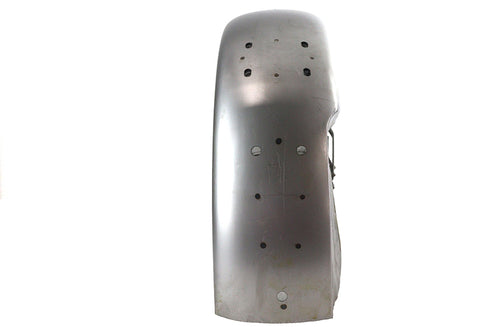

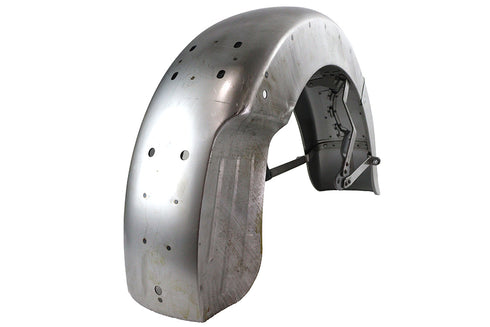

1949-54 FL Rigid Rear Fender

Rigid rear fender features a three rib indent in the chain guard cut-out panel and 7/8 inch wide braces. 1949 rigid rear fender features a one rib indent. Wire loom provisions on underside includes replica rigid rear fender hinge spring connector loom and segmented tube on skirt. Assembly is for use with Tombstone tail lamps. Includes straps and u starp reveted in place. *NOTE: Does not accept stainless steel fender trim and clips for this year. *NOTE: Replacement fenders ordered through H-D dealers came with 3/4 inch brackets that are inchover the counter inch replacements not OEM installed by the factory. Constructed with 3/4 inch fender brace. *NOTE: Fender tail with cut out is #50-0366.
Measurements: Fender Width: 7-1/4 inches
Tech Notes: Underside of rigid rear fender details: A) Wire Loom Spring B) Hinge Junction C) Loom Clip Strip on Fender Radius D) Spring Clip E) 7/8inch Wide Brace F) Ribbed Chain Panel. *NOTE: Replacement fender ordered thru H-D dealer came with 3/4inch brackets. These were over the counter replacements not OEM installed at the factory. Suggested to use with #31-0186 Parkerized Rear Kickstand Catch Suggested to use with #50-1250 Wire loom Fender Strip Raw
Instructions: http://www.vtwinmfg.com/Instructions/50/50-0429.pdf
