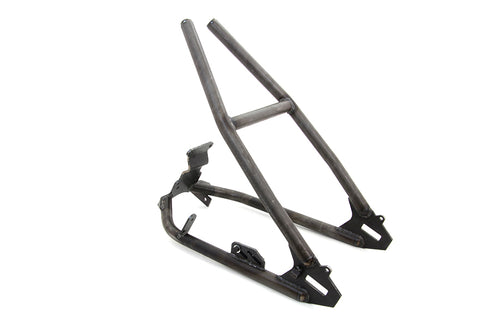

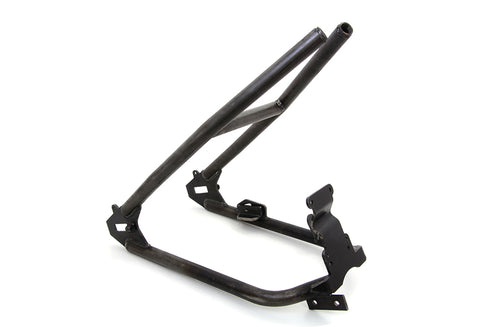

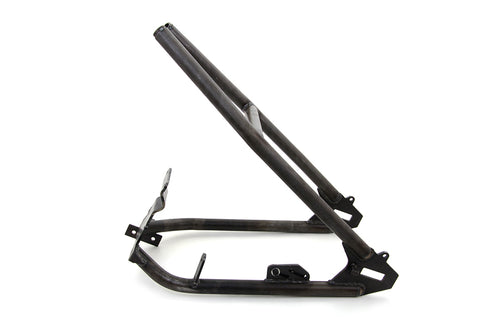

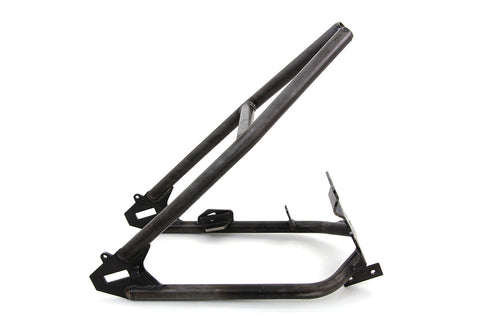

Weld-On XL Frame Hardtail
This hardtail accepts a 14-1/2 inch long axle with a 3/4 inch outer diameter and stock rear wheel. The axle plate is welded onto the frame. DIY hardtialing can be accomplished by qualified welder as rear motor mount plate can be bolted to engine assebmly by the (4) mount bolts. Battery box mount and lower fender brace must be fabricated and installed by welding. Welding should be performed by a skilled welding technician. Custom application for 1982-2003 XL. Order rear axle adjusters separately. Suggested to use with top mount oil tank. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
Measurements: Inner Width: 11-1/4 inches
Tech Notes: Suggested to use with #42-9917 or #42-9912 Chrome Battery Carrier Kit. Suggested to use #20-4004 1-1/8inch Carlisle Panther Rear Belt 136 Tooth. Suggested to use #44-0148 Raw Rear Axle. Suggested to use #23-0587 Replica Chrome Rear Caliper with Bracket and Brake Pads. Suggested to use #51-0630 Frame Caliper Mount Set Left Side. Suggested to use #31-0418 Rear Exhaust Bracket Chrome. Suggested to use #37-0462 Chrome Steel Spacers. Suggested to use #37-0889 Chrome Axle Nut Kit Acorn Style. Suggested to use with #44-0545 Chrome Rear Axle Adjuster.
Instructions: http://www.vtwinmfg.com/Instructions/51/51-0984.pdf
FITS
Harley Davidson XL 1982
Harley Davidson XL 1983
Harley Davidson XL 1984
Harley Davidson XL 1985
Harley Davidson XL 1986
Harley Davidson XL 1987
Harley Davidson XL 1988
Harley Davidson XL 1989
Harley Davidson XL 1990
Harley Davidson XL 1991
Harley Davidson XL 1992
Harley Davidson XL 1993
Harley Davidson XL 1994
Harley Davidson XL 1995
Harley Davidson XL 1996
Harley Davidson XL 1997
Harley Davidson XL 1998
Harley Davidson XL 1999
Harley Davidson XL 2000
Harley Davidson XL 2001
Harley Davidson XL 2002
Harley Davidson XL 2003
