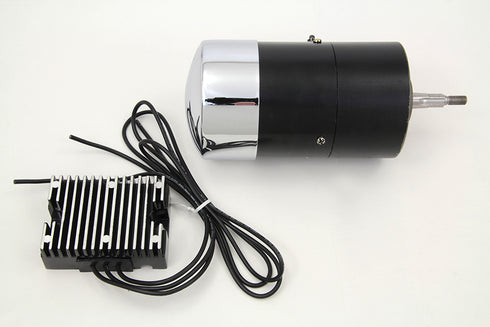

32E/65A 12 Volt Alternator Conversion Kit Chrome
Kit requires a 12 volt battery system which can be ordered separately. Regulator must be mounted by technician as desired. Alternator body has 1/4-24 threads to fit models equipped with 32E or 52K generators so original screws can be used. Includes mount holes for 1/4 inch-24 x 5/16 inch-24 mount screws in mounting flange. Shaft is splined as a 65A/12V generator armature. Order screws gear and oil deflector kit correct mount bolts as required gasket and washers separately. *NOTE: The alternator will replace 6 and 12 volt 2 and 3 brush generators on 1958-1969 FL Harley models. Must order correct gear and bolt kit for installation. Replaces 1936-1957 3 brush and 1958-1969 2 brush generators.
Tech Notes: Suggested to use with #32-1547 45 Generator Gear Kit. Suggested to use with #32-0204 13 Tooth Generator Gear Kit. Produces 7.8 amp @ 2000 RPM's. Produces 8.5 amp @ 3000 RPM's. Produces 8.9 amp @ 4000 RPM's.
Instructions: http://www.vtwinmfg.com/Instructions/32/32-1282.pdf
FITS
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson EL 1941
Harley Davidson EL 1942
Harley Davidson EL 1943
Harley Davidson EL 1944
Harley Davidson EL 1945
Harley Davidson EL 1946
Harley Davidson EL 1947
Harley Davidson EL 1948
Harley Davidson EL 1949
Harley Davidson EL 1950
Harley Davidson EL 1951
Harley Davidson EL 1952
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson W 1936
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
